12V Automatic Lead Acid Battery Charger, 1.2A Smart Fast Trickle Fully Automatic Battery Charger Maintainer for Car…

Product Details

Description:

Efficiency (at 100% load): >=85%

Model: 12V / 1. 2A

Dimensions: 3.8*1.9*2.2 inch

Input Voltage Rating 110-240V Connection: NO Need to Disconnect AFTER CHARGED Manufacturer Part Number: BC-1212

Recommended Battery Capacity: 12V / 7-10Ah Input Frequency: 50-60HZ Maximum Output Power: 15W

Ripple:

Leakage Current:

Designed to keep 12-volt vehicle batteries fully charged and ready for use. Solid cover Compact, lightweight and portable

Optimized charging process.

Multi-mode charger with universal input voltage.

Protection against polarity inversion, overcharge and short circuit.

Comes with alligator clips for easier attachment.

Automatically switches to float / maintenance voltage after fully charging the battery.

Compatible with automobiles, motorcycles, ATVs, personal watercraft, RVs, boats, lawn tractors, etc. Two-color charging status LED indicator 3-Phase Battery Charging.

Phase 1: Constant charge mode The charge current is at maximum capacity once it is connected to a sealed lead acid battery.

Phase 2: Constant voltage mode At 80-95% charged, the charger will automatically convert to a constant voltage mode, whilst the charge current decreases to the charge termination level.

Phase 3: Float charge mode Once fully charged the charger can be unplugged, otherwise it will switch to a lower charging voltage, 13. 6v/cell or 14. 8v/cell.

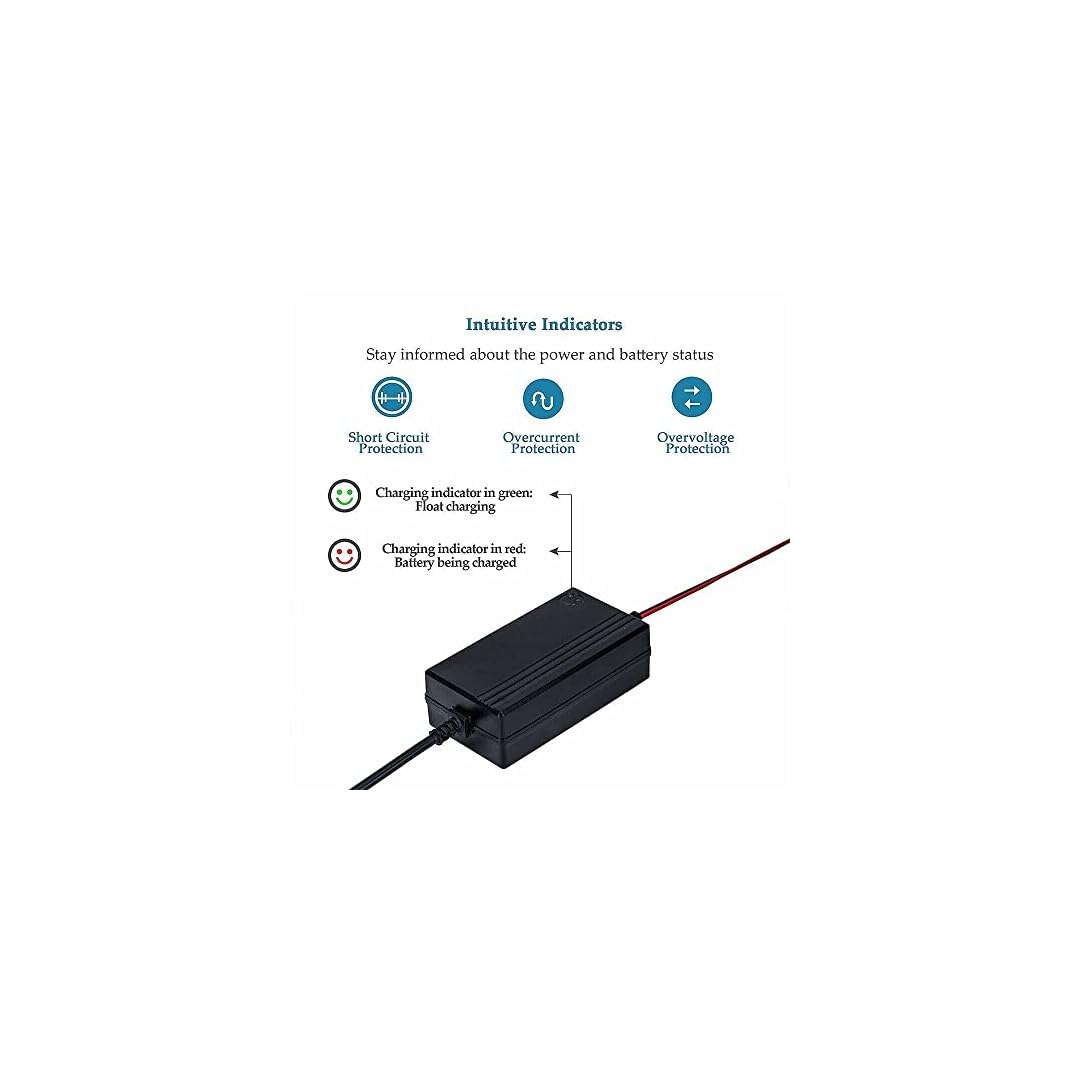

The battery can remain connected for as long as needed, and once you reconnect it to the battery it will automatically switch to phase 1. The phases are clearly identified by the LED light. A red light will shine for phase 1 and 2 and green will shine for phase 3.

Package Detail:

1*Car Battery Charger with 2 clips

Make sure this fits by entering your model number.
Battery Charger, Maintainer—-An all-weather battery charger, battery maintainer, It can charge all types of 12V lead-acid batteries, including flooded or sealed maintenance free batteries (AGM & gel cell).
Fully Automatic—-No need of any manual operation, just plug and leave it for charging and maintaining your batteries automatically for long time. The microprocessor controlled program will monitor the whole charging progress and automatically stop when the battery is fully charged. Then it will monitor the battery voltage and maintain the battery with a float charging current.
Over Charge Protective—–Built-in short circuit and reverse polarity. Safer floating charger with maximum voltage up to 14.8 volts.
Easy to Use—-Energy Saving design with one LED indicator to display different charging status. Simply hook up the charger to the battery, plug it in and walk away. Note: be care of the clip positive and negative electrode (Red = positive, Black = negative)
Use occasions—-It’s the smart charger for car, truck, boat, motorcycle, RV, lawn tractor, or any other vehicle with a 12-volt battery.
